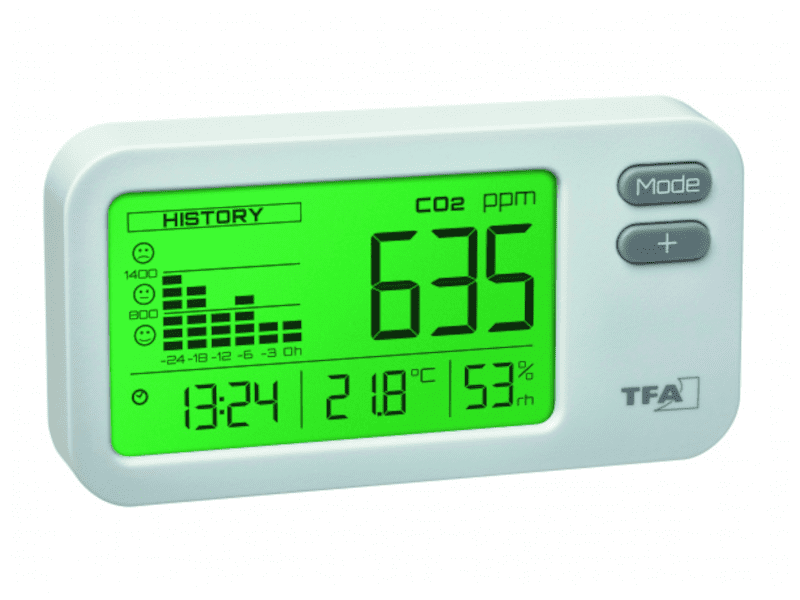

CO2 monitor

Product characteristics:
• Indication of actual CO2 concentration and history value of the last 24 hours
• Multi-function display illumination in different colours
• Indication of time, temperature and humidity
• Micro USB port (5V) to power via PC or power adapter

Application area:
For monitoring the CO2 concentration in buildings, where people are present, eg: schools, offices

Technical data:
CO2-level:
Measuring range: (0…9999) ppm
Resolution: 1 ppm
Factory accuracy: ±7 % or ±100 ppm 0…3000 ppm (which is greater), ±10 % > 3000 ppm

Temperature:
Measuring range: (0…50) °C
Resolution: 0,1 °C
Factory accuracy: ± 1,0 °C

Relative humidity:
Measuring range: (1…95) rH%
Resolution: 1 rH%
Factory accuracy: ±3 rH%, between (35…75) rH%
