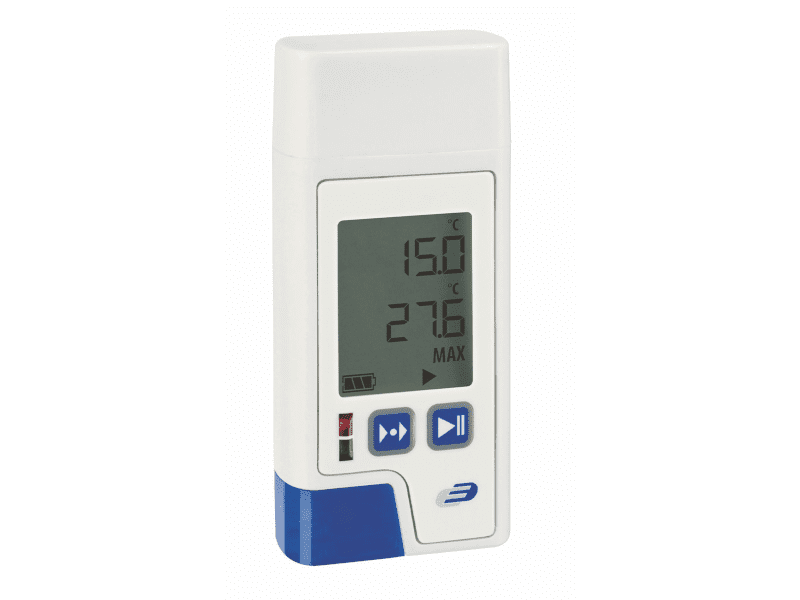

Temperature datalogger

Product characteristics:
– Usable without software (default settings, 15-minute-interval)
– Automatic PDF creation
– Movement sensor for shock recording e.g.: door or windows closing
– Adjustable recording interval: 10 seconds…24 hours
– Max-Min-Display memory (resettable)
– Time marking functions for measuring results
– Battery lifetime appr. 4 years (recording interval >=15 minutes)
– Status and alarm LEDs
– Includes wall mount
– HACCP conform according to EN12830

Software: LogConnect

Option:
– with barometer function KVDLOG220

Application area:
– Product transportation and storage applications
– Quality surveillance in laboratories during production in storage areas
– Monitoring conditions in manufacturing facilities
– Maintaining product storage according to HACCP
– Monitoring of fridges for the pharmaceutical industry

Technical data:
Measuring interval: 10 s…24 hours, preset 15 minutes
Measuring range: (-40…+70) °C
Resolution: 0.1 °C
Accuracy: ±0.5 °C in range (-10…40) °C, otherwise ±1.0 °C
Memory capacity: 150.000 measurements
Interface: USB
Power supply: 1 x 3.6 V-os Lithium 1/2 AA
Size: 91.5 x 42 x 20 mm
Weight: 200 g

Operating manual
