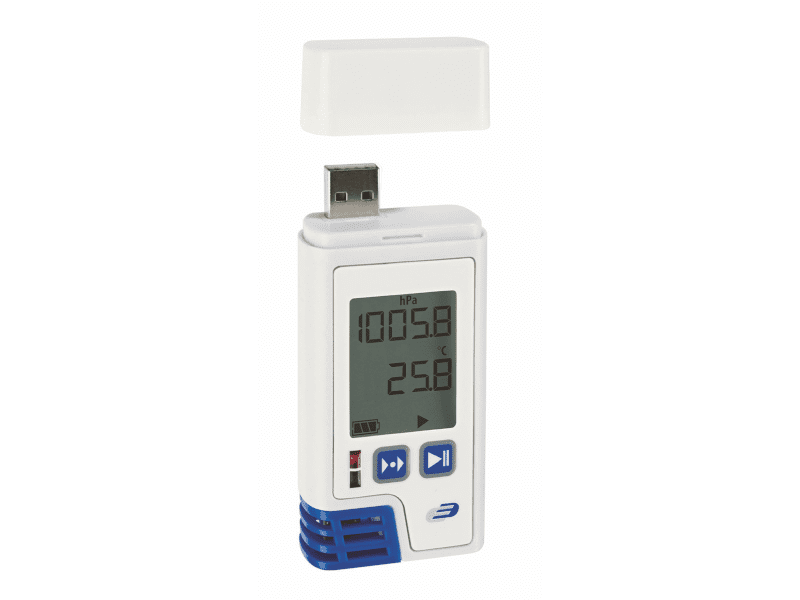

Temperature/relative humidity/air pressure datalogger

Product characteristics:
– Usable without software (default settings, 5-minute-interval)
– Automatic PDF creation
– Movement sensor for shock recording e.g.: door or windows closing
– Adjustable recording interval: 10 seconds…24 hours
– Max-Min-Display memory (resettable)
– Time marking functions for measuring results
– Battery lifetime appr. 4 years (recording interval >=15 minutes)
– Status and alarm LEDs
– Includes wall mount

Application area:
– Product transportation and storage applications
– Quality surveillance in laboratories during production in storage areas
– Monitoring conditions in manufacturing facilities
– Monitoring of fridges for the pharmaceutical industry.

Software: LogConnect

Technical data:
Measuring interval: 10 s…24 hours, preset 5 minutes
Temperature range: (-40…+70) °C
Resolution: 0.1 °C
Accuracy: ±0.5 °C in range (-10…40) °C, otherwise ±1.0 °C
Humidity range: (0…100) rH%
Resolution: 0.1 rH%
Accuracy: ±3 rH% in range (40…60) rH%, ±3.5 rH% in range (20…40) and (60…80) rH%, otherwise ±5 rH%
Air pressure range: (300…1100) hPa
Resolution: 0.1 hPa
Accuracy: ±1.0 hPa in range (900…1100) hPa, otherwise ±0.5 FS
Memory capacity: 60.000 measurements
Interface: USB
Power supply: 1 x 3.6 V-os Lithium 1/2 AA
Size: 91.5 x 42 x 20 mm
Weight: 200 g

Operating manual
