Description

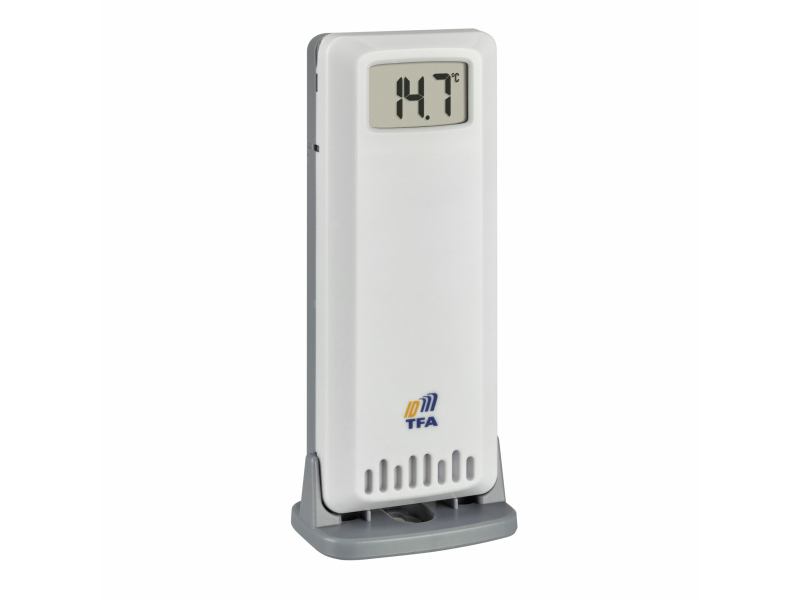

Professional temperature and humidity transmitter for the TFA.me datalogger system, with waterproof cable sensor

Product characteristics:
– Alternating display of all measuring values
– For wireless transmission of temperature and humidity
– Professional temperature sensor for cooling appliances, liquids, with extra-large measuring range up to +110°C
– High precision, fast transmission (every 60 sec.)
– For indoor or outdoor use
– Cable probe included (approx. 2m)
– Compatible with the TFA.me system

Application area:
For the control of temperature and humidity (indoor or outdoor), e.g. simultaneous temperature control of refrigerator, aquarium/terrarium, solar system, heating system, etc.,

Technical data:
Temperature measurement (internal): (-40…+60 °C), resolution 0.1 °C, accuracy ±0.6 °C (0°C…50°C)
Relativ humidity (internal): (10…99) rH%, resolution 1 rH%, accuracy ±3,5 rH% (35…75 rH%)
Temperature measurement (external): (-50…+110°C), resolution 0.1 °C, accuracy ±0.6 °C (-20°C…50°C)
Length of the external cable: approx. 200 cm
Measuring interval: every 20 sec
Transmission interval: every 60 sec
Frequency: 868 MHz
Transmission distance: max. appx. 100m in open field
Data strorage: 12 month
Display: yes
Power supply: 2 x 1,5V AA (not included)
Housing: plastic

Compatible gateway unit:
KVDMEID01 gateway unit

Operating manual
