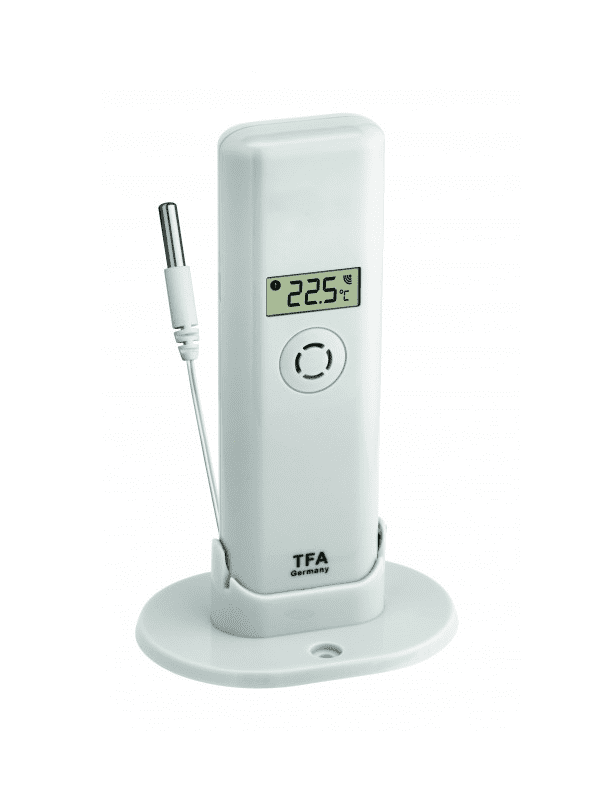

Thermometer unit for SmartHome datalogger system

Presentation video

Product characteristics:
– Internal and external temperature measurement
– Wireless data transfer to the gateway
– Data saving to the internet via gateway
– Data storage in the cloud
– Data query and alarm functions via internet to PC and smartphone
– Free application for smartphones for displaying data
– Graphic displaying of data
– MAX-MIN function
– Data export function

Application area:
Monitoring temperature of air-conditioned areas, rooms

Technical data:
Temperature measurement (internal): (-30…+60 °C), resolution 0.1 °C, accuracy ±1 °C
Temperature measurement (external): (-30…+60 °C), resolution 0.1 °C, accuracy ±1 °C
Cable length: 140 cm
Data transfer to cloud: every 7 min, with realtime alarm
Frequency: 868 MHz
Transmission distance: 100 m (open area)
Data strorage: 90 days
Display: yes
Power supply: 2 x 1.5 V AAA (not included)
Housing: plastic

Compatible gateway unit:
KVDW gateway unit

Operating manual
