Description

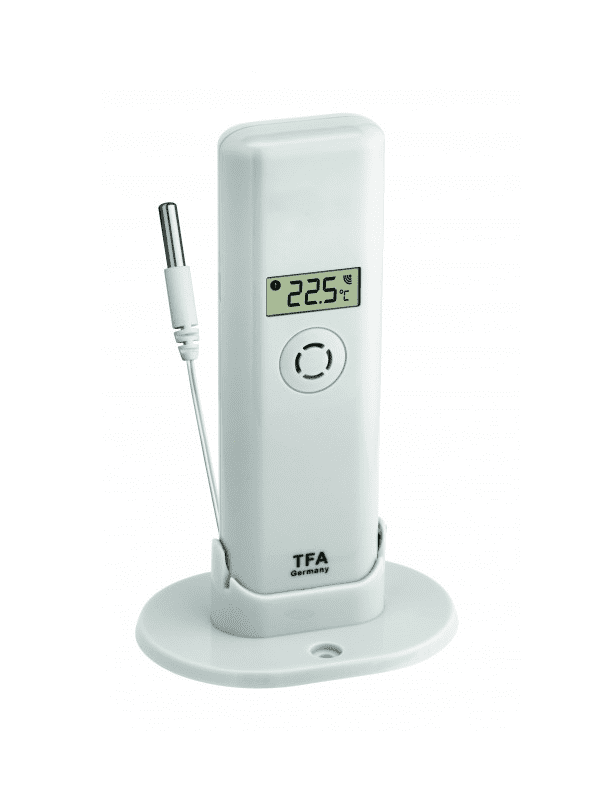

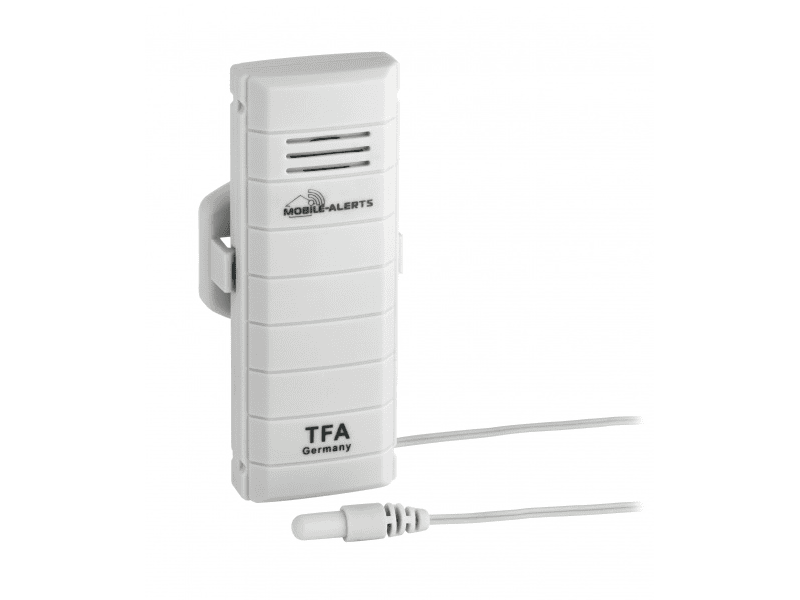

Thermometer unit for SmartHome datalogger system

Presentation video

Product characteristics:
– External temperature measurement
– Wireless data transfer to the gateway
– Data saving to the internet via gateway
– Data storage in the cloud
– Data query and alarm functions via internet to PC and smartphone
– Free application for smartphones for displaying data

Application area:
Monitoring temperature of fridge, freezer, aquarium or in pool or pond via a waterproof cable sensor

Technical data:
Temperature measurement (external): (-30…+60 °C), resolution 0.1 °C, accuracy ±1 °C
Length of the external cable: 100 cm
Data transfer to cloud: every 7 min, with realtime alarm
Frequency: 868 MHz
Transmission distance: 100 m (open area)
Data strorage: 90 days
Display: no
Power supply: 2 x 1.5 V AAA (not included)
Housing: plastic

Compatible gateway unit:
KVDW gateway unit

Operating manual
