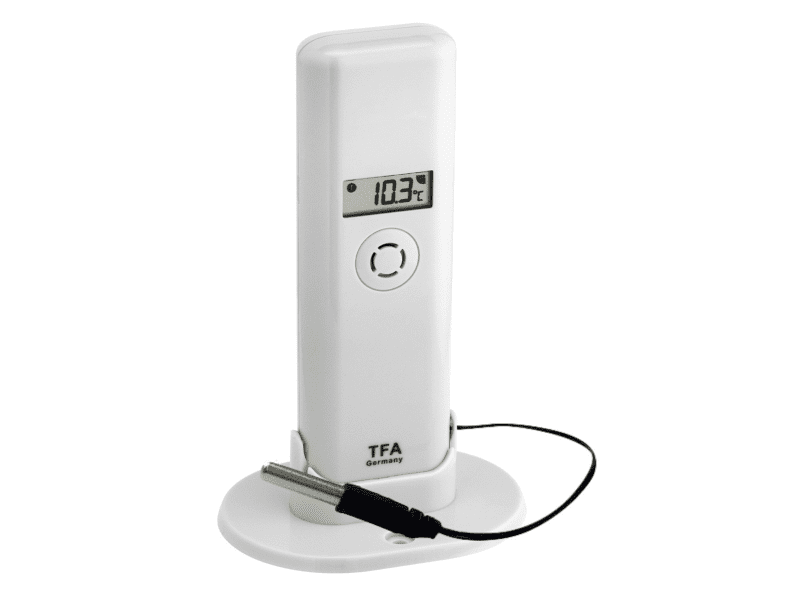

External/internal thermometer and relative humidity meter unit for SmartHome datalogger system

Presentation video

Product characteristics:
– External/internal temperature and relative humidity measurement
– Wireless data transfer to the gateway
– Data saving to the internet via gateway
– Data storage in the cloud
– Data query and alarm functions via internet to PC and smartphone
– Free application for smartphones for displaying data
– Graphic displaying of data
– MAX-MIN function
– Data export function

Application area:
Monitoring temperature and relative humidity of air-conditioned areas, rooms

Technical data:
Data transfer to cloud: every 3,5 mins, with realtime alarm
Temperature measurement (internal): (-40…+60 °C), resolution 0.1 °C, accuracy ±1 °C

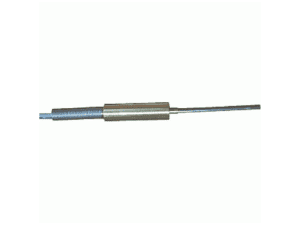

Temperature measurement (external): (-50…+110 °C), resolution 0.1 °C, accuracy ±0.5 °C
Rel. humidity measurement: (10…90) rH%, resolution 1 rH%, accuracy ±4 rH% in range (35…75) rH%
Data storage: 18 months
Display: yes
Power supply: 2 x 1.5 V AA
Housing: plastic

Compatible gateway unit:
KVDW gateway unit

Operating manual
